Naziv
Koda izdelka
Testna napetost
Nazivni presek vodnika (mm2)
Min. zunanji premer
Cena
Količina
+

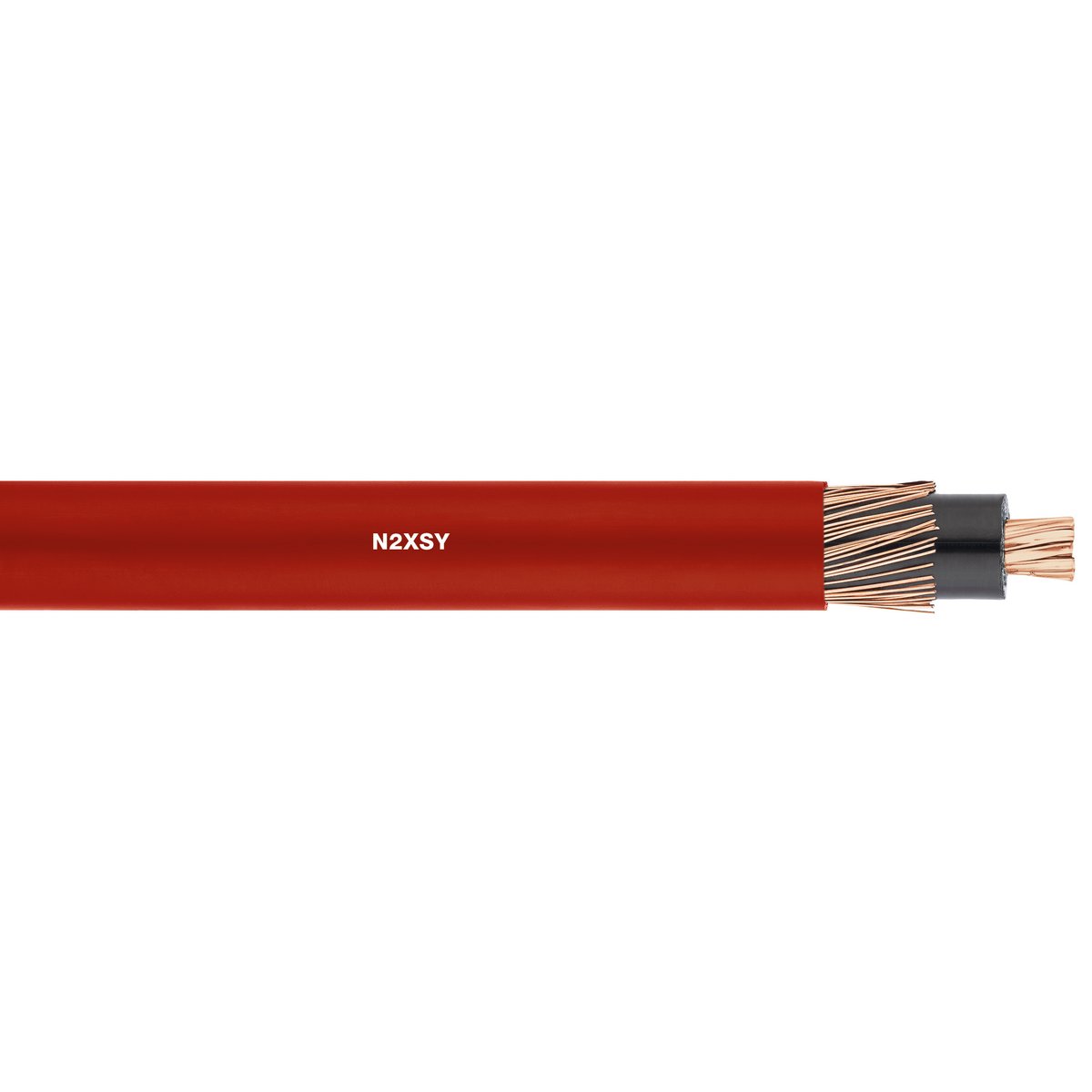

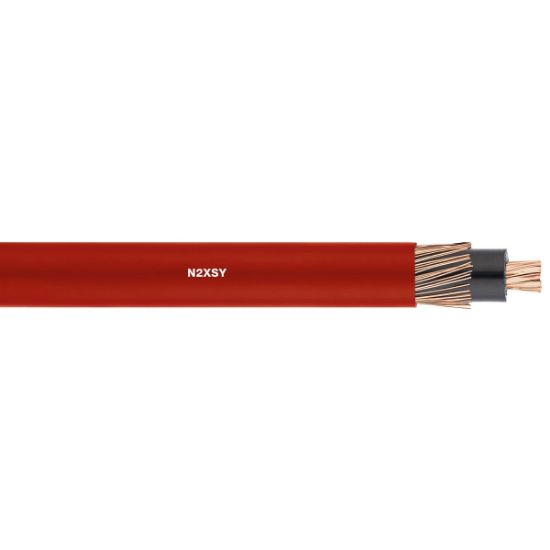

N2XSY 1X35 RM/16 12/20kV RD
1552067
30 kV
35 mm2
27 mm
11,36 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

  • VDE-certified cable with ?VDE? testing mark for proven reliability and quality according to VDE 0276-620.
  • Cross-linked conductive layers above and below the core insulation prevent partial discharges and enable constant operational safety.
  • Available in voltage classes 6/10 (12) kV, 12/20 (24) kV and 18/30 (36) kV.
  • Good installation properties enable easy installation, even in the event of difficult cable routing.
  • Available in conductor cross-sections up to 800 mm2.

Applications

  • Suitable for energy distribution in medium-voltage networks.
  • Also suitable for indoor installation and closed installation ducts for energy supply company, industrial and distribution networks.
  • Suitable for medium mechanical stress due to the PVC outer sheath.
  • Suitable for outdoor use, subject to the temperature range and only if protected against direct sunlight.
  • For fixed installation in water, air and earth. In the ground, the minimum installation depth without additional, suitable underground protection is 0.6 m, and at least 0.8 m under roads (according to HD 620/VDE 0276-620 Part 10-C (point 4)).
  • Suitable for use at temperatures up to -40°C.

Documentation

Notes

  • Trade product, not a LAPP product.
  • Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
