Slika HITRONIC® GOF DUPLEX PNC
Slika HITRONIC® GOF DUPLEX PNC Slika HITRONIC® GOF DUPLEX PNC Slika HITRONIC® GOF DUPLEX PNC

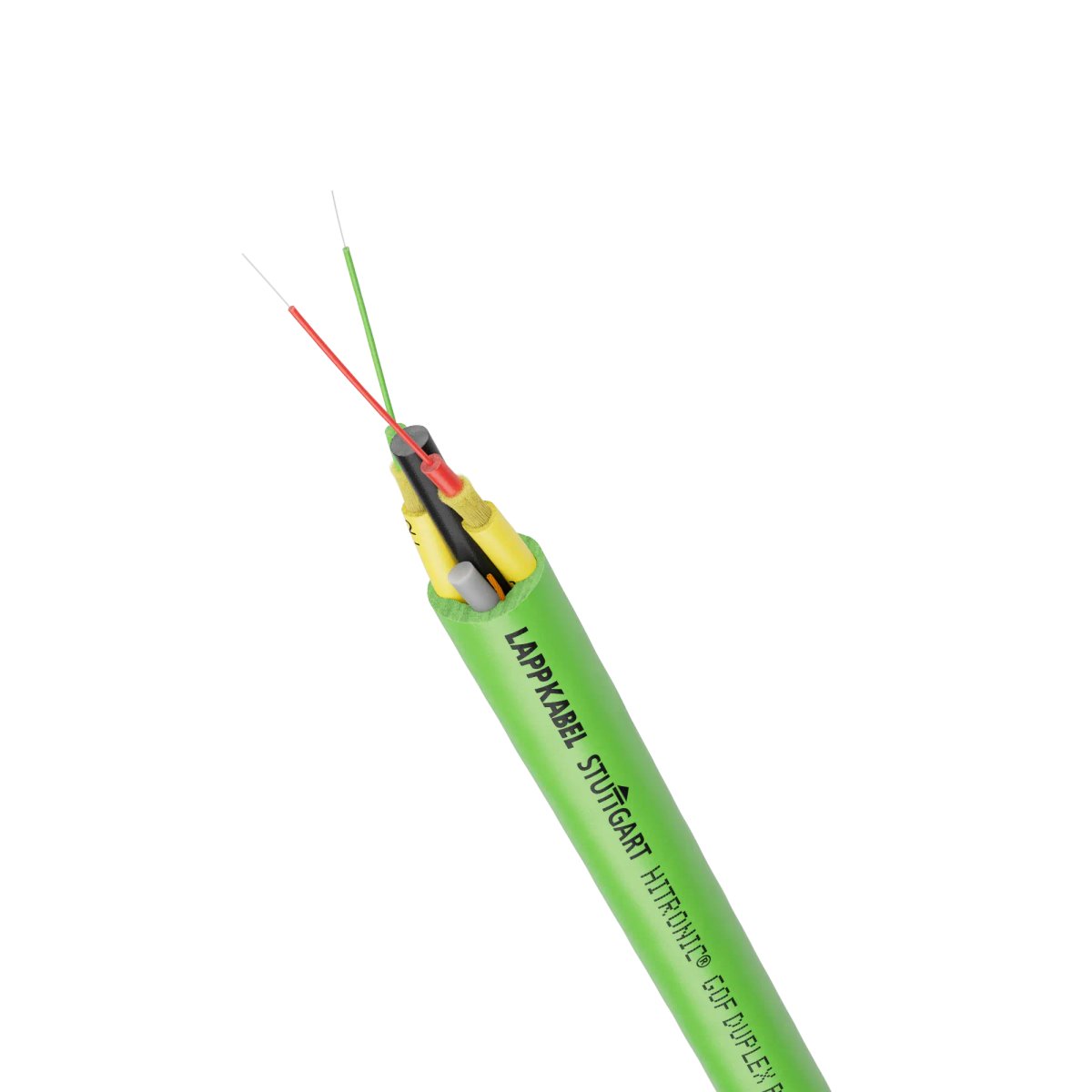

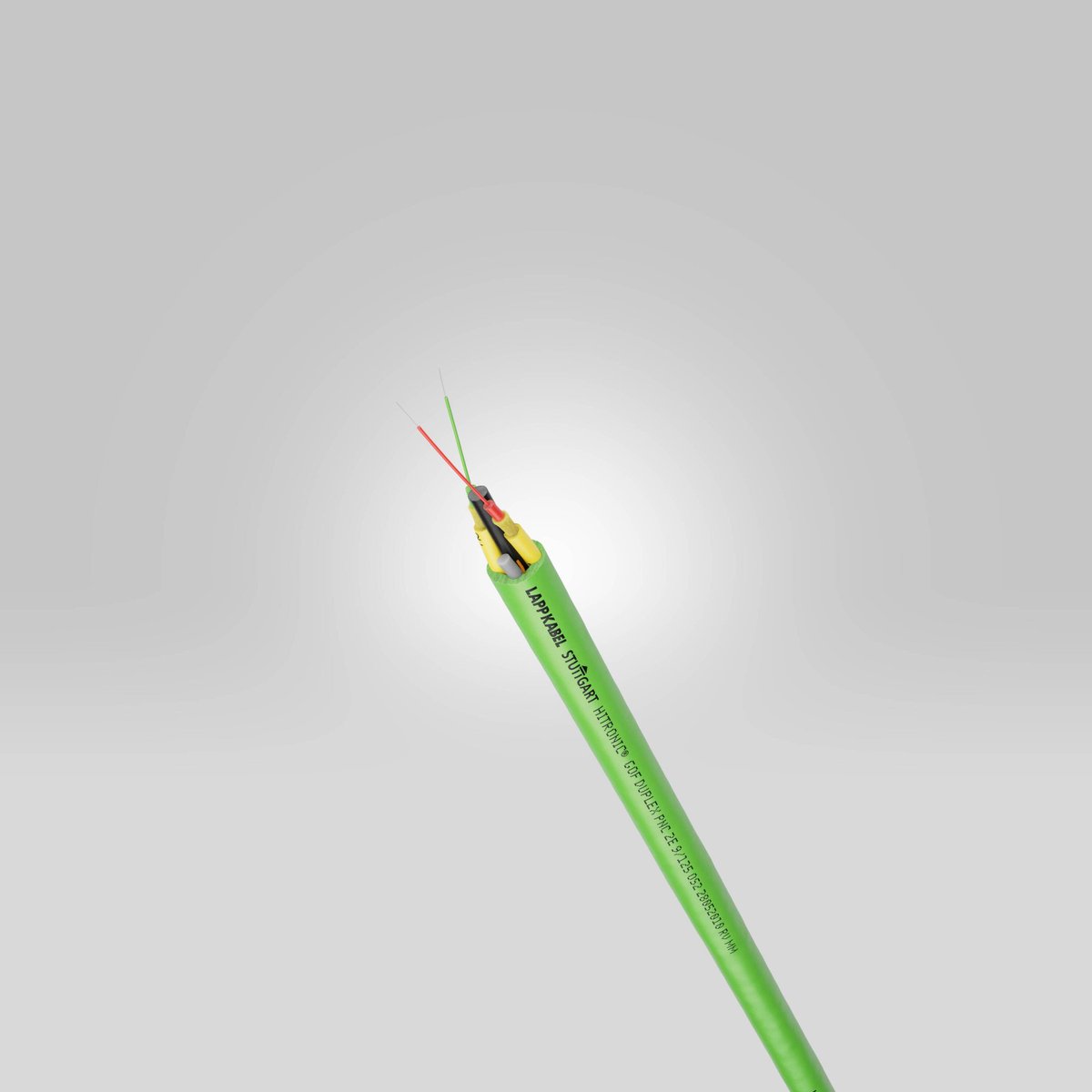

HITRONIC® GOF DUPLEX PNC

Bodite prvi in ​​ocenite ta izdelek
Naziv
Koda izdelka
Nazivni premer jedra
Min. zunanji premer
Nazivni zunanji premer
Cena
Količina
+
HITRONIC® GOF DUPLEX PNC 2E 9/125 OS2
28052010
2.9 mm
8.3 mm
8.8 mm
4,17 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
HITRONIC® GOF DUPLEX PNC 2G 62,5/125 OM1
28052007
2.9 mm
/
8.8 mm
4,26 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
HITRONIC® GOF DUPLEX PNC 2G 50/125 OM3
28052009
2.9 mm
/
8.8 mm
4,25 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Min. količina za naročanje: 2000
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
HITRONIC® GOF DUPLEX PNC 2G 50/125 OM2
28052008
2.9 mm
/
8.8 mm
4,21 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

  • Cable design allows rotations with torsion angles of up to ± 180°/m.
  • Allows assembly on site as a breakout cable.
  • Durable cable, successfully tested for 1.5 million bending cycles in cable chains and 1.5 million alternating bending cycles in the TicToc bending test.
  • Halogen-free sheath compound to meet special fire safety requirements.
  • Resistant product thanks to the outer sheath material which is resistant to abrasion, notches and cuts.
  • Available in different GOF fibre categories (OM1 - OM3, OS2).
  • No electromagnetic interference from non-metallic materials is generated inside the cable.
  • With non-metallic aramid yarns for strain relief.

Applications

  • Can be used in dry rooms.
  • For highly flexible, continuously flexing use in moving machine parts and in the cable chain in the PROFINET network (type C).
  • The PU outer sheath withstands high mechanical loads.
  • The PU outer sheath is resistant to mineral oil-based lubricants and is highly chemical resistant.
  • For fixed and protected installation in installation ducts, on cable trays, in the riser zone, in hollow ceilings and floors, as well as for short distances.

Documentation

Notes

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
