ETHERLINE® ROBUST

Naziv

Koda izdelka

Maks. najvišja delovna napetost (ne za napajalne aplikacije)

test voltage conductor/conductor

Testna napetost vodnika/opleta

Cena

Količina

ETHERLINE® ROBUST PN Cat.5

2170451

125 V

1 kV

2,21 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ETHERLINE® ROBUST PN Cat.7

2170452

125 V

1 kV

2,84 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

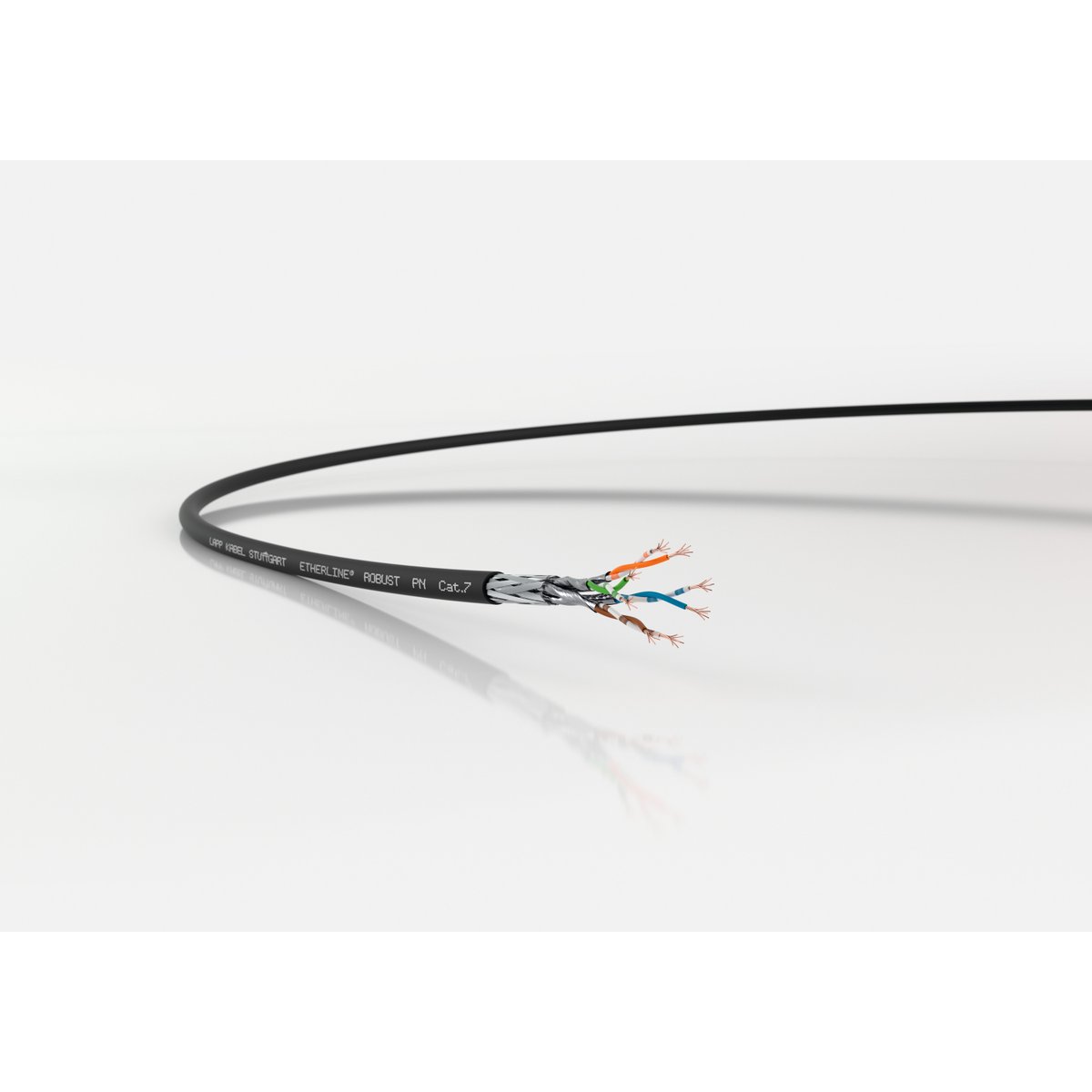

ETHERLINE® ROBUST Cat.7 FLEX

2170453

125 V

1 kV

2,04 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

Tested resistance to ECOLAB® disinfectants and cleaning agents.
For the transmission of analogue and digital signals in the frequency range up to 100 MHz (Cat. 5e) or up to 600 MHz (Cat. 7).
High resistance to electromagnetic interference thanks to star quad stranding as well as double screening made of aluminium-laminated foil and high degree of copper screening braiding (SF/UTP).
Halogen free core insulation and sheath compound to meet special fire safety requirements.
Low smoke density in the event of fire (according to DIN EN IEC 61034-2).
Excellent resistance to a wide range of chemical substances (e.g. ammonia compounds, biogases), as well as plant, animal or synthetic fats and oils (e.g. bio-oils and ester-based hydraulic oils).
Particularly suitable in conjunction with water-soluble cleaning agents and coolants.
Resistant to hot water and steam when subjected to frequent steam jet cleaning.
Tested resistance to ECOLAB disinfectant and cleaning agents.
High resistance to electromagnetic interference thanks to star quad stranding as well as double shielding made of aluminium-laminated foil and high degree of copper braiding (SF/UTP).
For the transmission of analogue and digital signals in the frequency range up to 100 MHz (Cat. 5e) or up to 600 MHz (Cat. 7).

Typical areas of application are washing plants, sewage treatment plants, composting plants and applications in the food industry.
Suitable for outdoor use.
“PN” variants are suitable for flexible use in the PROFINET network (type B).
For fixed installation and structured building cabling according to EN 50173 and ISO/IEC 11801.
Also suitable for EtherCAT and EtherNet/IP applications.
Can be used universally on machine interfaces for many applications in data and signal transmission.
Typical areas of application are washing plants, sewage treatment plants and applications in the food industry.
Also suitable for EtherCAT and EtherNET/IP applications.
For fixed installation and structured building cabling according to EN 50173 and ISO/IEC 11801.
Suitable for outdoor use.

Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
PROFINET® is a registered trademark of PNO (PROFIBUS user organisation).
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
