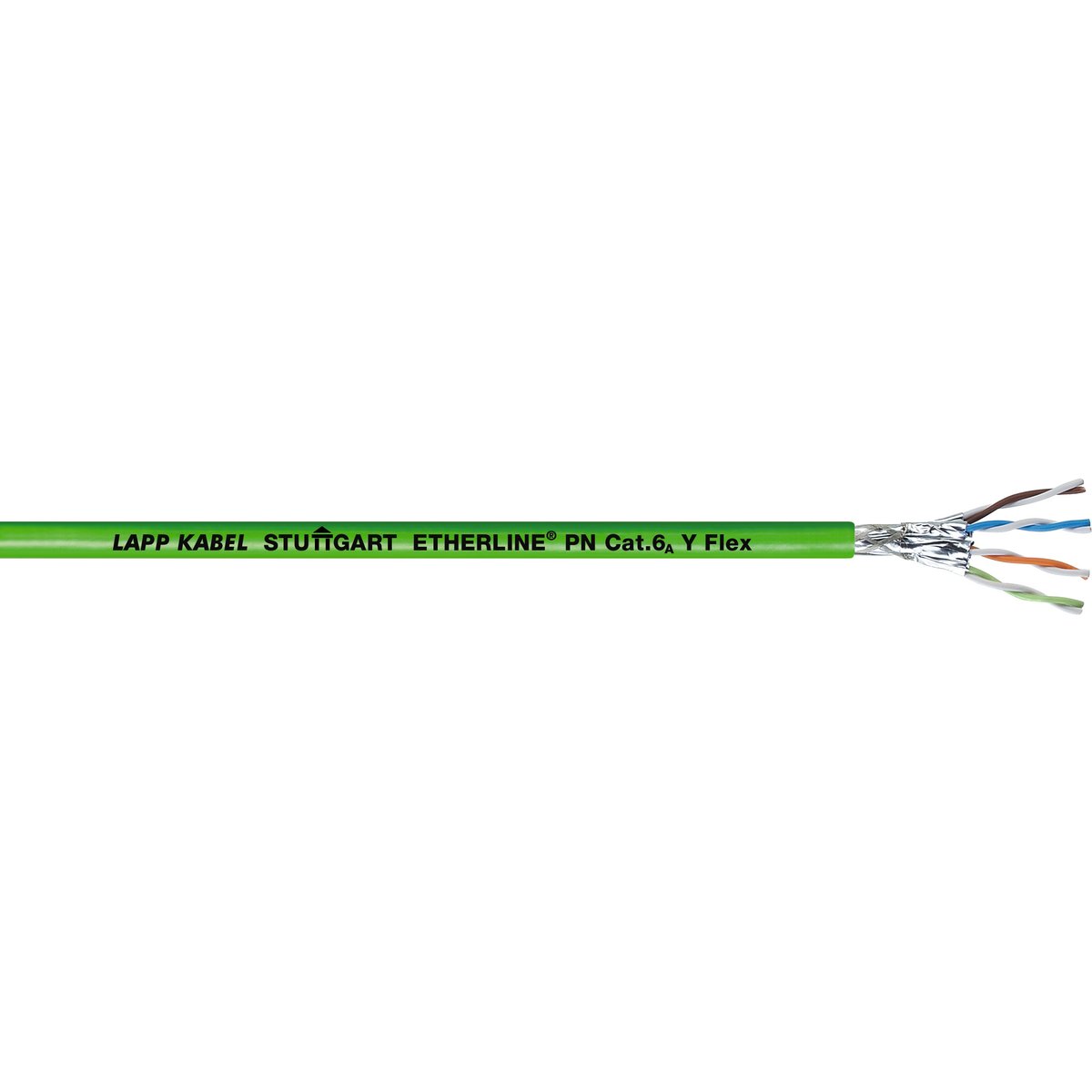

ETHERLINE® PN Cat.6A FLEX

Naziv

Koda izdelka

Maks. najvišja delovna napetost (ne za napajalne aplikacije)

test voltage conductor/conductor

Testna napetost vodnika/opleta

Cena

Količina

ETHERLINE® PN Cat.6A Y FLEX 4x2x23/7

2170930

125 V

1 kV

3,83 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ETHERLINE® PN Cat.6A FRNC FLEX 4x2x23/7

2170931

125 V

1 kV

4,18 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

Fast information exchange through Ethernet technology.
UL certification according to technical data enables the product to be used on the North American market.
Available with robust PVC or halogen free FRNC outer sheath.
For transmission of analogue and digital signals in the frequency range up to 500 MHz.
Cat. 6A performance up to 10 Gbit/s.
Ideal protection against electromagnetic interference due to pair screening with aluminium compound foil and copper screening braiding as overall screening (S/FTP).

Suitable for many applications, depending on the sheath material.
Can be used in dry, damp or wet environments.
Suitable for all LAN networks and Ethernet applications up to 10GBase-T.
For flexible use in the PROFINET network (type B), due to stranded conductor design.
The “FLEX” version with reduced conductor cross-section is suitable for applications with limited space.

Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
