ETHERLINE® MARINE FRNC FC Cat.5

Naziv
Koda izdelka
Maks. najvišja delovna napetost (ne za napajalne aplikacije)
test voltage conductor/conductor
Testna napetost vodnika/opleta
Cena
Količina
+
ETHERLINE® MARINE FRNC FC CAT.5 2x2xAWG22
2170889
125 V
0.7 kV
0.7 kV
2,00 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Ni zaloge, predviden rok dobave: 21. 12. 2024.

Benefits

  • The "Fast Connect" design, including inner sheath and cross separator, significantly reduces the cable assembly time, by eliminating the time-consuming removal of the pair shielding. It also provides undiminished shielding of the core pairs.
  • Power over Ethernet-capable cable for simultaneous power and data supply of smaller network components with low energy requirements (e.g. IP cameras, wireless access points).

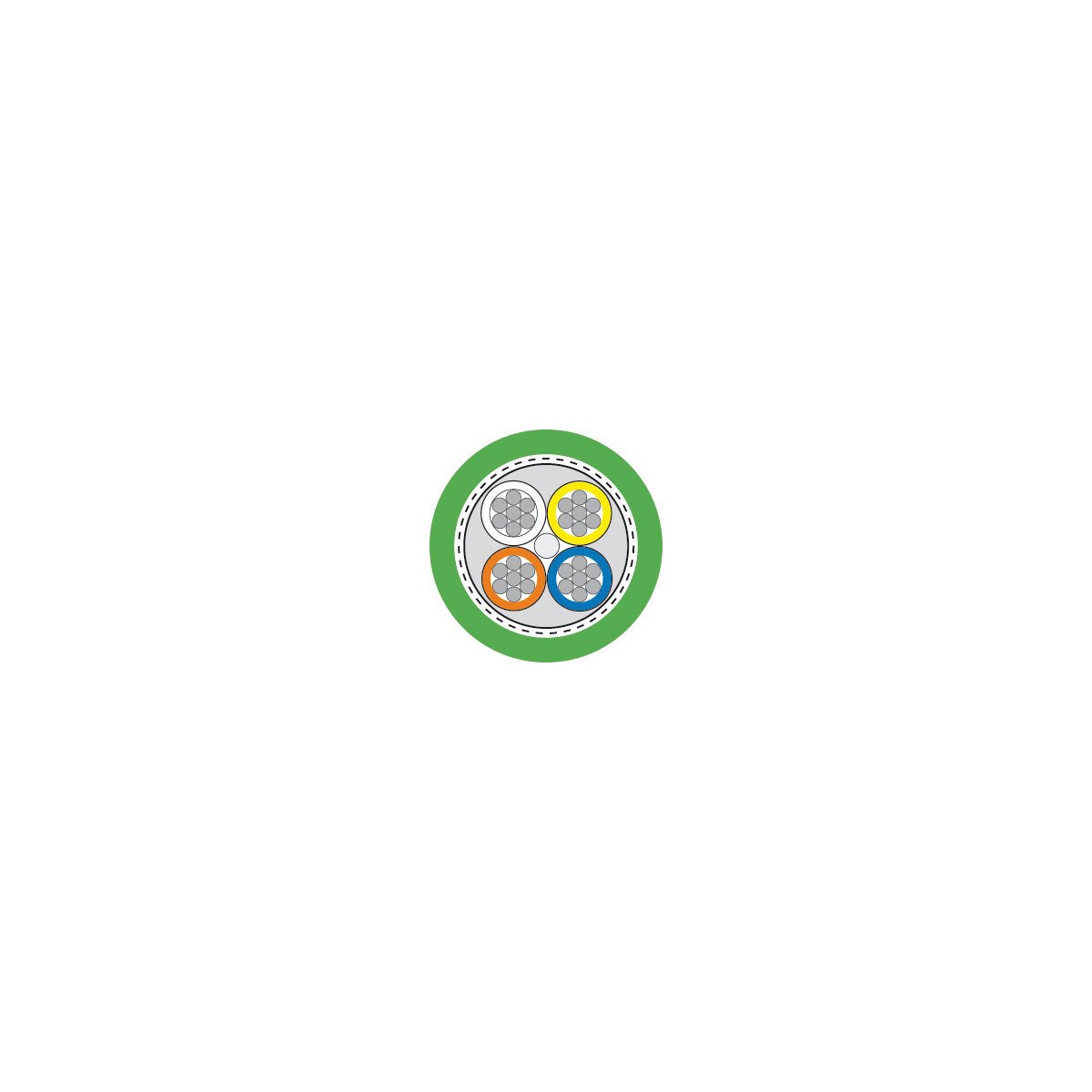

  • High resistance to electromagnetic interference thanks to star quad stranding as well as double shielding made of aluminium-laminated foil and high degree of copper braiding (SF/UTP).
  • UL/CSA certification according to technical data enables the product to be used in the North American market.
  • Cat. 5 performance up to 100 Mbit/s.

Applications

  • Also suitable for EtherCAT and EtherNET/IP applications.
  • Suitable for light mechanical stress.
  • Can be used in dry, damp or wet environments.
  • Suitable for outdoor use, subject to the temperature range.

Notes

  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • PROFINET® is a registered trademark of PNO (PROFIBUS user organisation).
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
