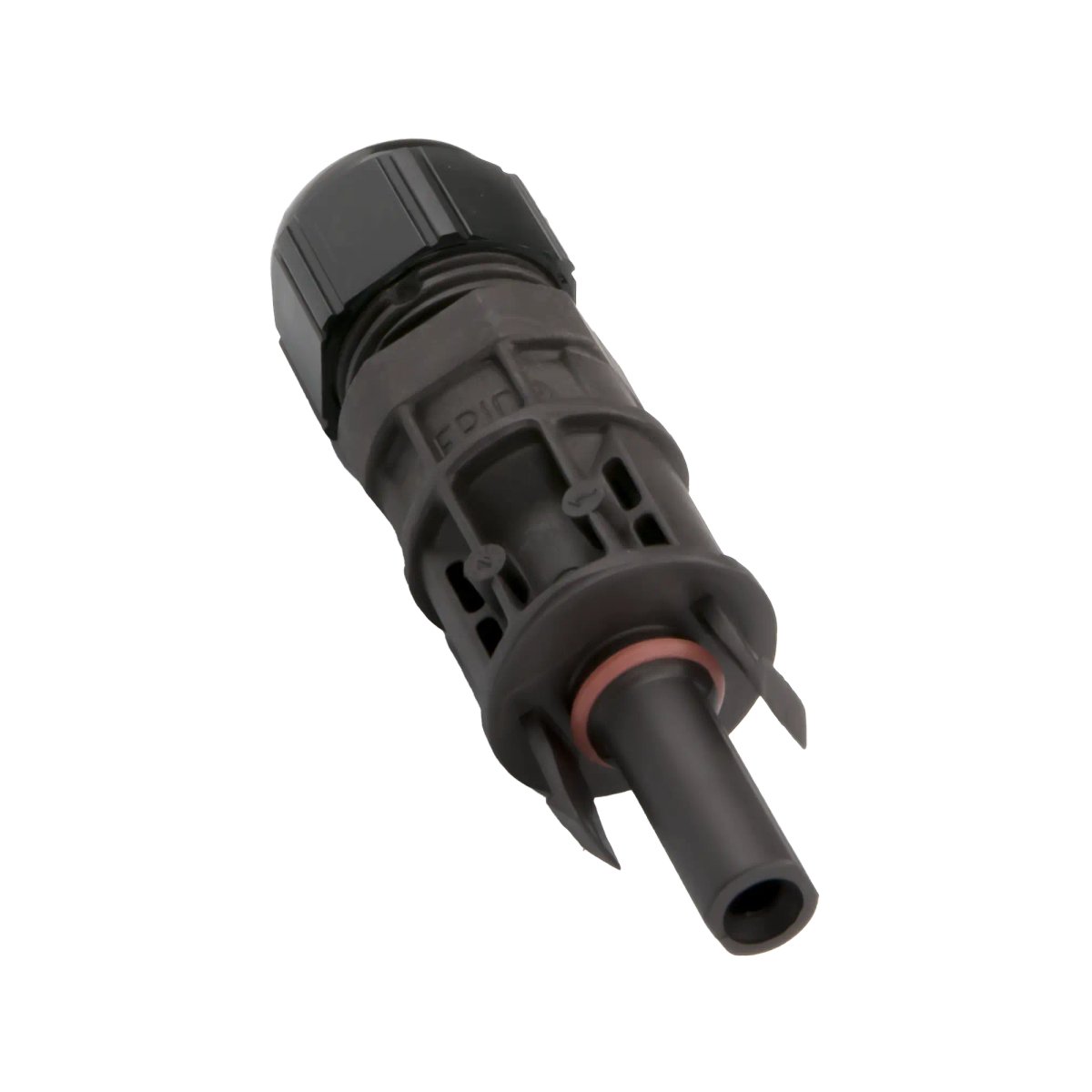

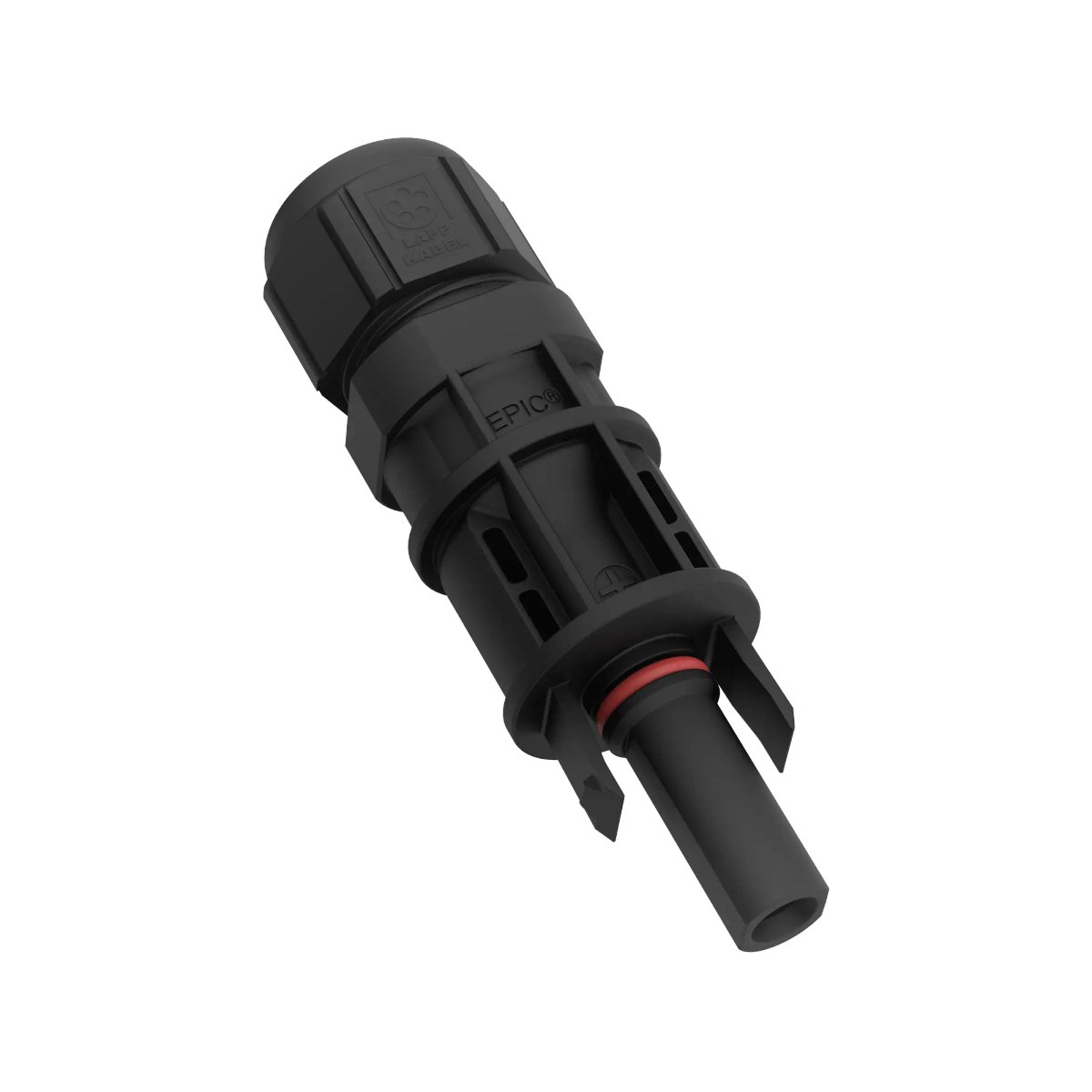

Slika EPIC® SOLAR 4Plus F
Slika EPIC® SOLAR 4Plus F Slika EPIC® SOLAR 4Plus F Slika EPIC® SOLAR 4Plus F Slika EPIC® SOLAR 4Plus F Slika EPIC® SOLAR 4Plus F

EPIC® SOLAR 4Plus F

Bodite prvi in ​​ocenite ta izdelek
Naziv
Koda izdelka
Maks. upor kontakta (mOhms)
Min. območje vpenjanja kabla
Maks. območje vpenjanja kabla
Cena
Količina
+
EPIC® SOLAR 4Plus F 2.5mm2
44428234
0.5 m?
5.2 mm
7.1 mm
1,83 €
*
Min. količina za naročanje: 100
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® SOLAR 4Plus F 4...6mm2
44428236
0.5 m?
5.2 mm
7.1 mm
1,63 €
*
Min. količina za naročanje: 100
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® SOLAR 4Plus F 10mm2
44428238
0.5 m?
5.2 mm
7.1 mm
1,32 €
*
Min. količina za naročanje: 100
Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

  • Particularly weatherproof and durable due to high-quality materials and solid construction.
  • Compatible with other systems on the market.
  • Low contact resistance at the contact point between the plug and socket for efficient energy transmission.
  • Suitable for cable cross-sections up to 10 mm2 to overcome long cable lengths.
  • Crimp termination ensures a secure connection between the connector and the cable (to be disconnected with a tool).
  • Double locking hooks secure the contact to the connector.
  • With TUEV Rheinland testing mark.

Applications

  • For use with EPIC® SOLAR 4PLUS M counter connectors (male insert).
  • For modern, high-performance photovoltaic systems up to 1,500 V.
  • For the cabling of solar modules, inverters and stand-alone systems.
  • Can be used with many ÖLFLEX® solar cables.
  • Note: Plugged connections have protection class IP 68 (1 m for 10 h).

Documentation

Notes

  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
