Slika EPIC® POWERLOCK Contacts
Slika EPIC® POWERLOCK Contacts Slika EPIC® POWERLOCK Contacts Slika EPIC® POWERLOCK Contacts Slika EPIC® POWERLOCK Contacts Slika EPIC® POWERLOCK Contacts Slika EPIC® POWERLOCK Contacts

EPIC® POWERLOCK Contacts

Bodite prvi in ​​ocenite ta izdelek
Naziv
Koda izdelka
Premer kontakta
Dolžina odstranjevanja izolacije vodnika
Presek povezovalnega vodnika (mm2)
Cena
Količina
+
EPIC® POWERLOCK SCM 95 (1)
44420231
14.90 mm
33 mm
95 mm2
57,62 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWERLOCK SS 120 (1)
44420232
/
33 mm
120 mm2
30,63 €
Ni zaloge, predviden rok dobave: 2. 02. 2025.
+
EPIC® POWERLOCK SCM 120 (1)
44420233
16.50 mm
33 mm
120 mm2
56,62 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWERLOCK SCM 185 (1)
44420234
21.00 mm
33 mm
185 mm2
56,13 €
Ni zaloge, predviden rok dobave: 30. 11. 2024.
+
EPIC® POWERLOCK SCM 240 (1)
44420235
24.00 mm
33 mm
240 mm2
58,20 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWERLOCK QCM 95 (1)
44420236
14.90 mm
33 mm
95 mm2
97,97 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWERLOCK QS 120 (1)
44420237
/
33 mm
120 mm2
30,80 €
Ni zaloge, predviden rok dobave: 7. 02. 2025.
+
EPIC® POWERLOCK QCM 120 (1)
44420238
16.50 mm
33 mm
120 mm2
57,33 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWERLOCK QCM 185 (1)
44420239
21.00 mm
33 mm
185 mm2
57,33 €
Ni zaloge, predviden rok dobave: 10. 02. 2025.
+
EPIC® POWERLOCK QCM 240 (1)
44420240
24.00 mm
33 mm
240 mm2
57,33 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWERLOCK SP S M12 (1)
44420241
/
/
/
33,45 €
Ni zaloge, predviden rok dobave: 7. 02. 2025.
+
EPIC® POWERLOCK QP S M12 (1)
44420242
/
/
/
35,33 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
EPIC® POWERLOCK SCM 150 (1)
44420256
18.60 mm
33 mm
150 mm2
56,62 €
Ni zaloge, predviden rok dobave: 31. 01. 2025.
+
EPIC® POWERLOCK QCM 150 (1)
44420257
18.60 mm
33 mm
150 mm2
57,33 €
Ni zaloge, predviden rok dobave: 13. 01. 2025.
+
EPIC® POWERLOCK SP C M12 (1)
44420260
/
/
/
50,28 €
Ni zaloge, predviden rok dobave: 9. 02. 2025.
+
EPIC® POWERLOCK QP C M12 (1)
44420261
/
/
/
53,01 €
Ni zaloge, predviden rok dobave: 31. 01. 2025.
+
EPIC® POWERLOCK QCM 35 (1)
44420290
9.55 mm
33 mm
35 mm2
60,10 €
Ni zaloge, predviden rok dobave: 8. 03. 2025.
+
EPIC® POWERLOCK QCM 50 (1)
44420291
11.20 mm
33 mm
50 mm2
62,13 €
Ni zaloge, predviden rok dobave: 12. 12. 2024.
+
EPIC® POWERLOCK QCM 70 (1)
44420292
13.00 mm
33 mm
70 mm2
57,98 €
Ni zaloge, predviden rok dobave: 8. 03. 2025.
+
EPIC® POWERLOCK SCM 35 (1)
44420293
9.55 mm
33 mm
35 mm2
59,74 €
Ni zaloge, predviden rok dobave: 9. 03. 2025.
+
EPIC® POWERLOCK SCM 50 (1)
44420294
11.20 mm
33 mm
50 mm2
57,62 €
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® POWERLOCK SCM 70 (1)
44420295
13.00 mm
33 mm
70 mm2
57,62 €
Ni zaloge, predviden rok dobave: 8. 03. 2025.
+
EPIC® POWERLOCK QCM 240 NEW
44420324
21.80 mm
33 mm
240 mm2
59,42 €
Ni zaloge, predviden rok dobave: 22. 02. 2025.
+
EPIC® POWERLOCK SCM 240 NEW (1)
44420339
21.80 mm
33 mm
240 mm2
58,67 €
Ni zaloge, predviden rok dobave: 22. 02. 2025.

Benefits

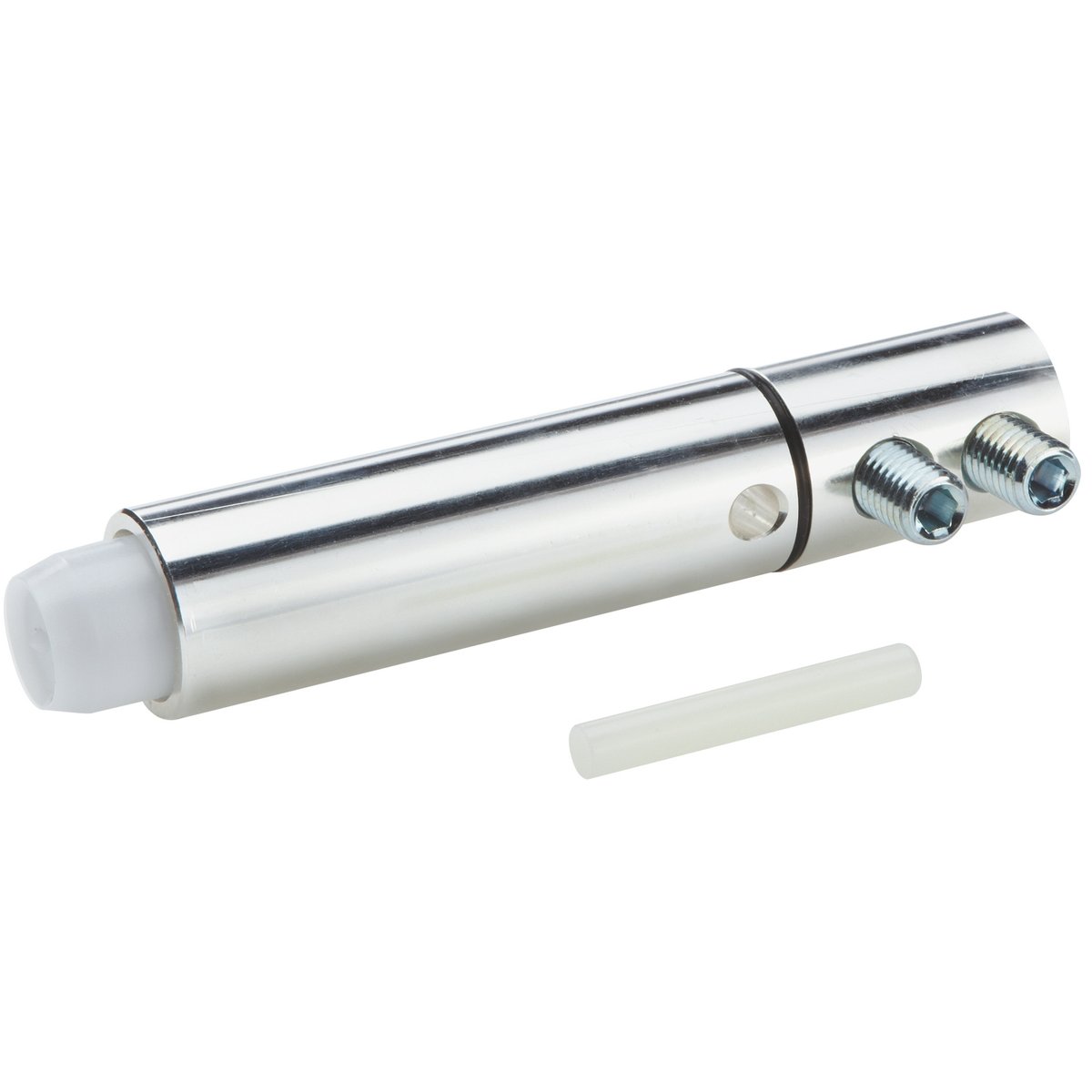

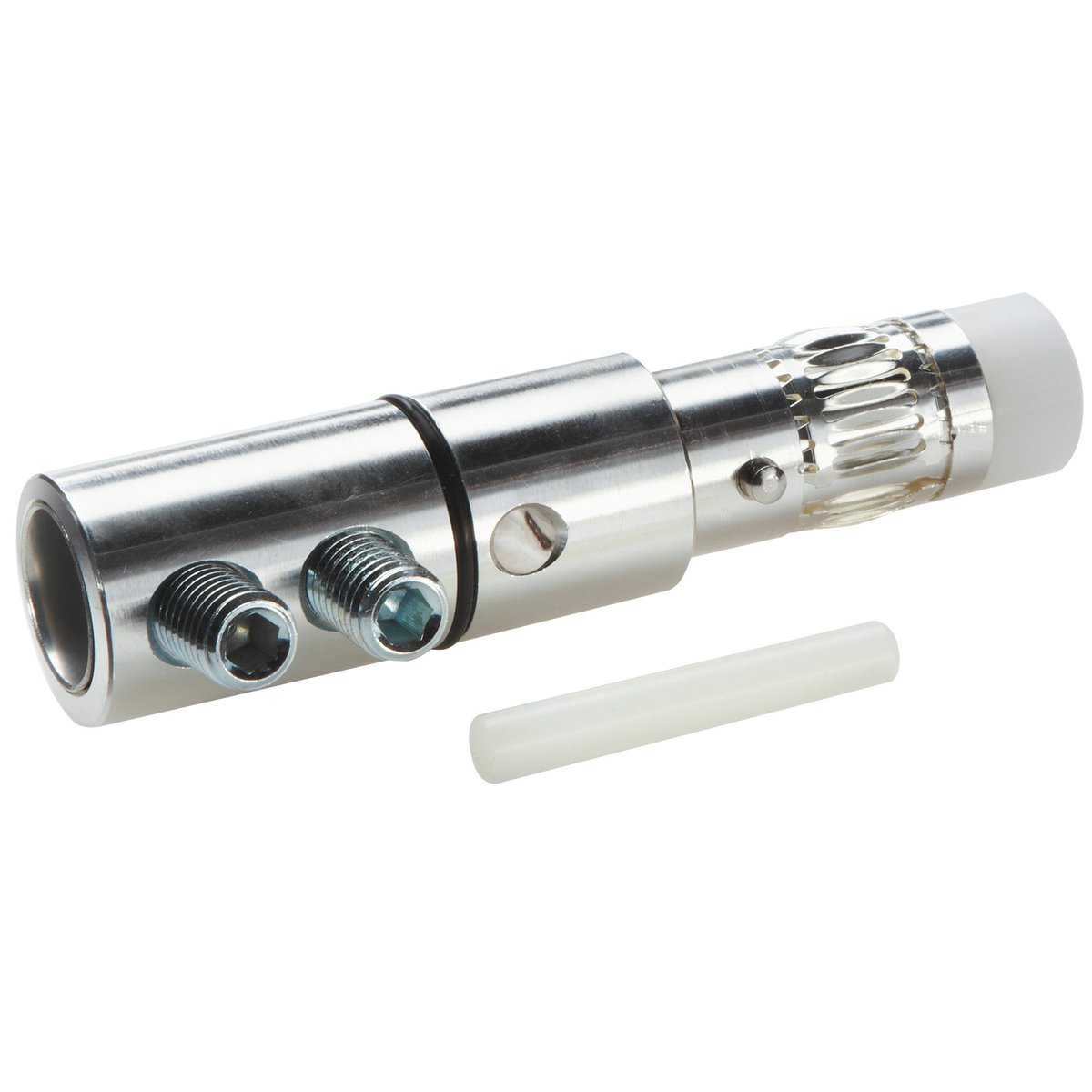

  • Screw contact for easy-to-service connection without special tools. Screw contact drain for use with type F6 S; screw contact source for use with type D6 S. Screw contacts are intended for conductor cross-sections up to 120 mm2. For smaller conductor cross-sections up to 50 mm2, a diameter reduction must be used.

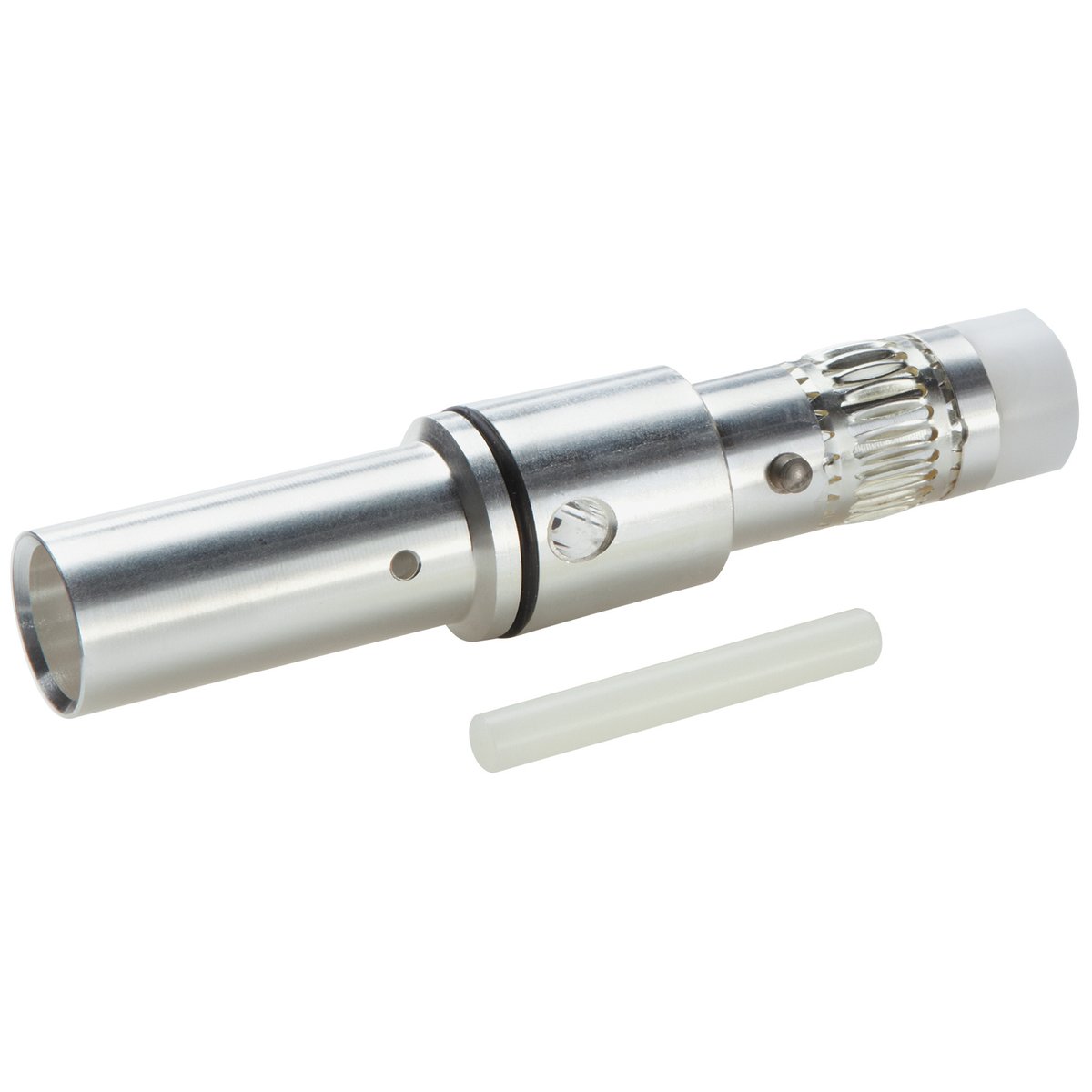

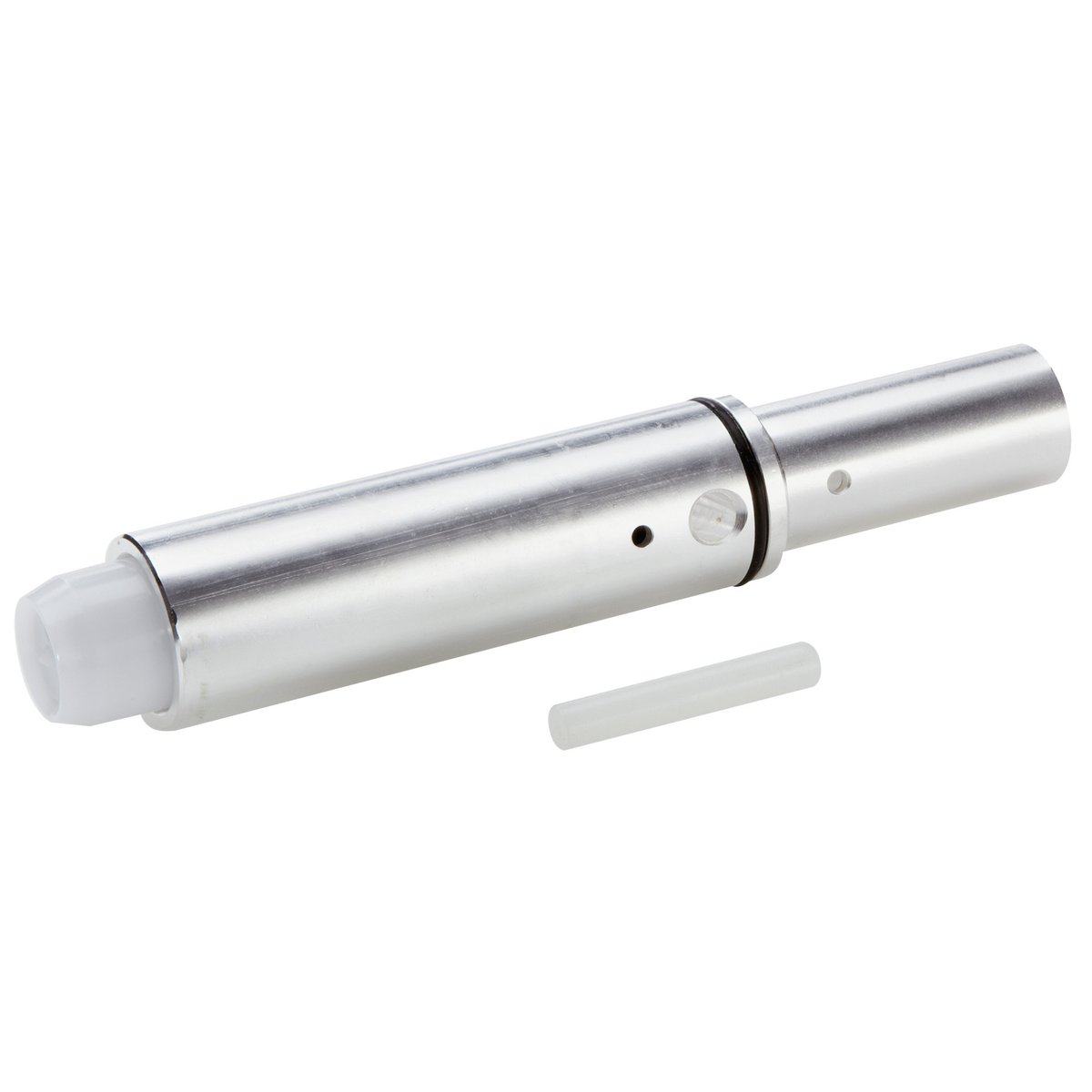

  • Crimp contact ensures maximum contact reliability between the contact and the cable and establishes a vibration-resistant connection. Different contact sizes available for conductor cross-sections from 35 to 240 mm2. Crimp contact, drain for use with type F6 C; crimp contact source for use with type D6 C.

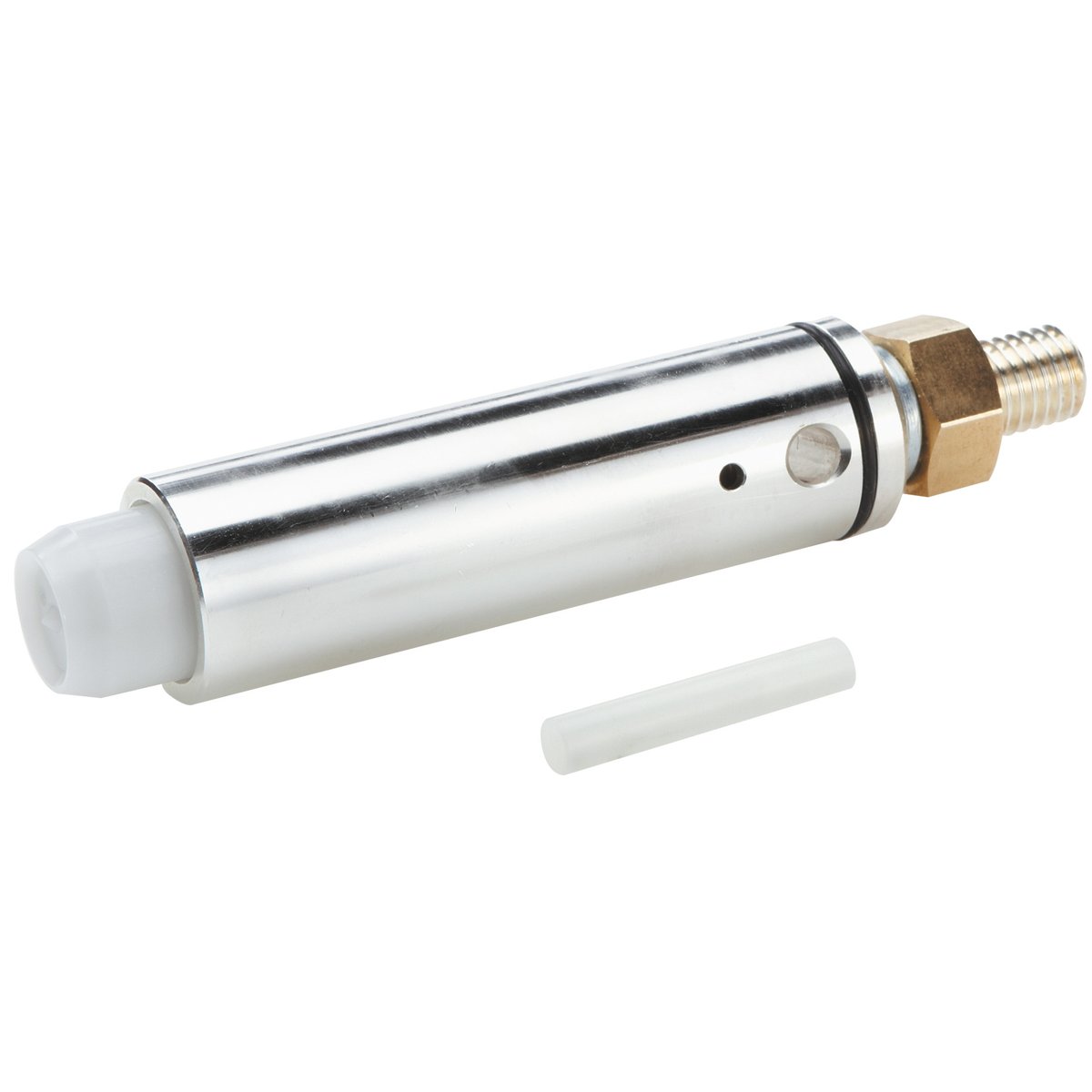

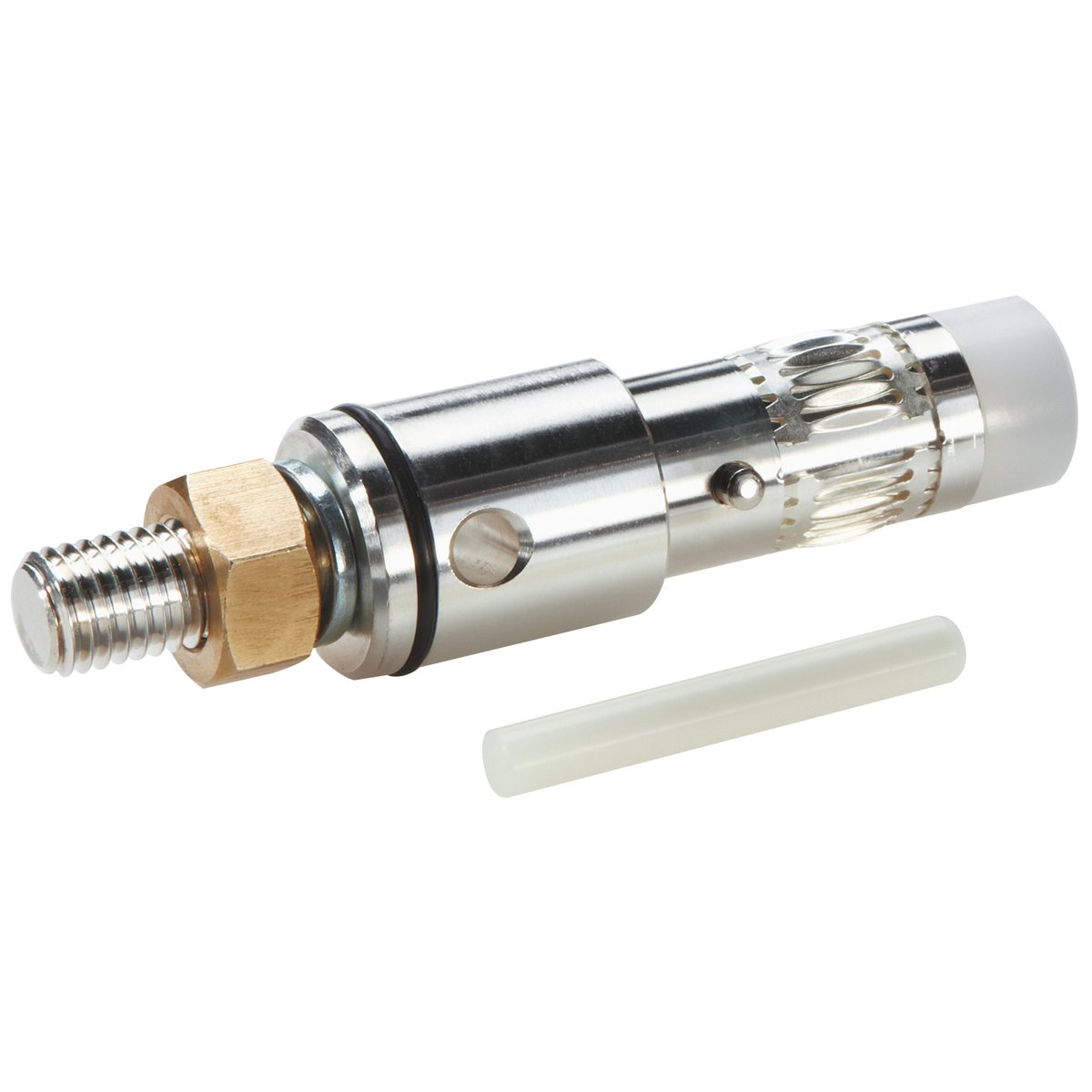

  • M12 threaded post contact for tube cable lug contact. Contact drain for use with type A1; contact source for use with design type A6 (depending on application either screw or crimp).
  • All contacts are supplied with contact retention pin for fastening the contact to the panel-mount base.

Applications

  • Can be used for mobile and stationary power supply or emergency power supply via generators or battery storage systems.
  • Suitable for electric motors and cooling units.
  • Suitable for three-phase and direct current applications. The maximum current in combination with screw contacts is 400 A; the maximum current in combination with crimp contacts is 660 A.
  • For use with unshielded single cores.
  • Withstands moderate mechanical stress.

Documentation

Notes

  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
