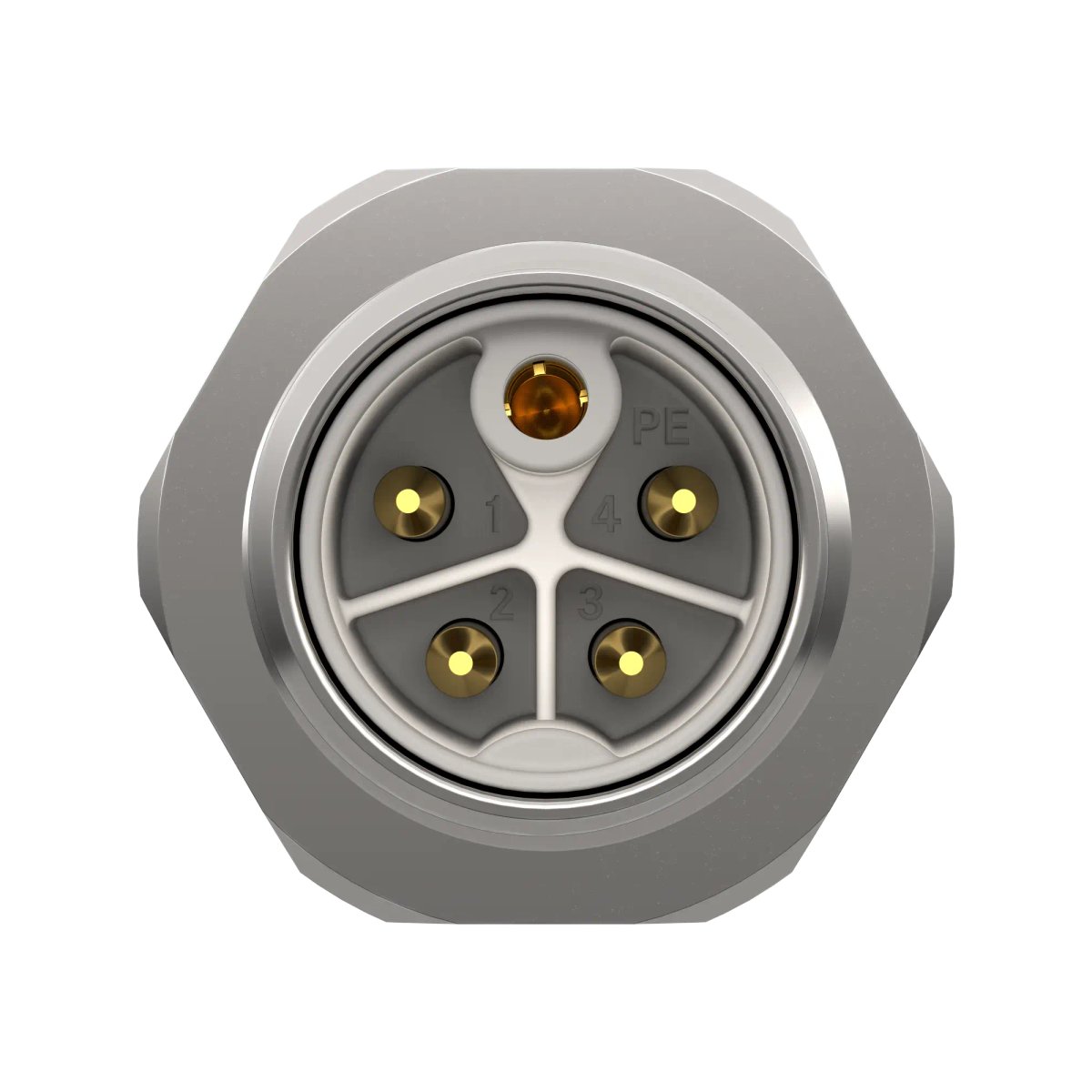

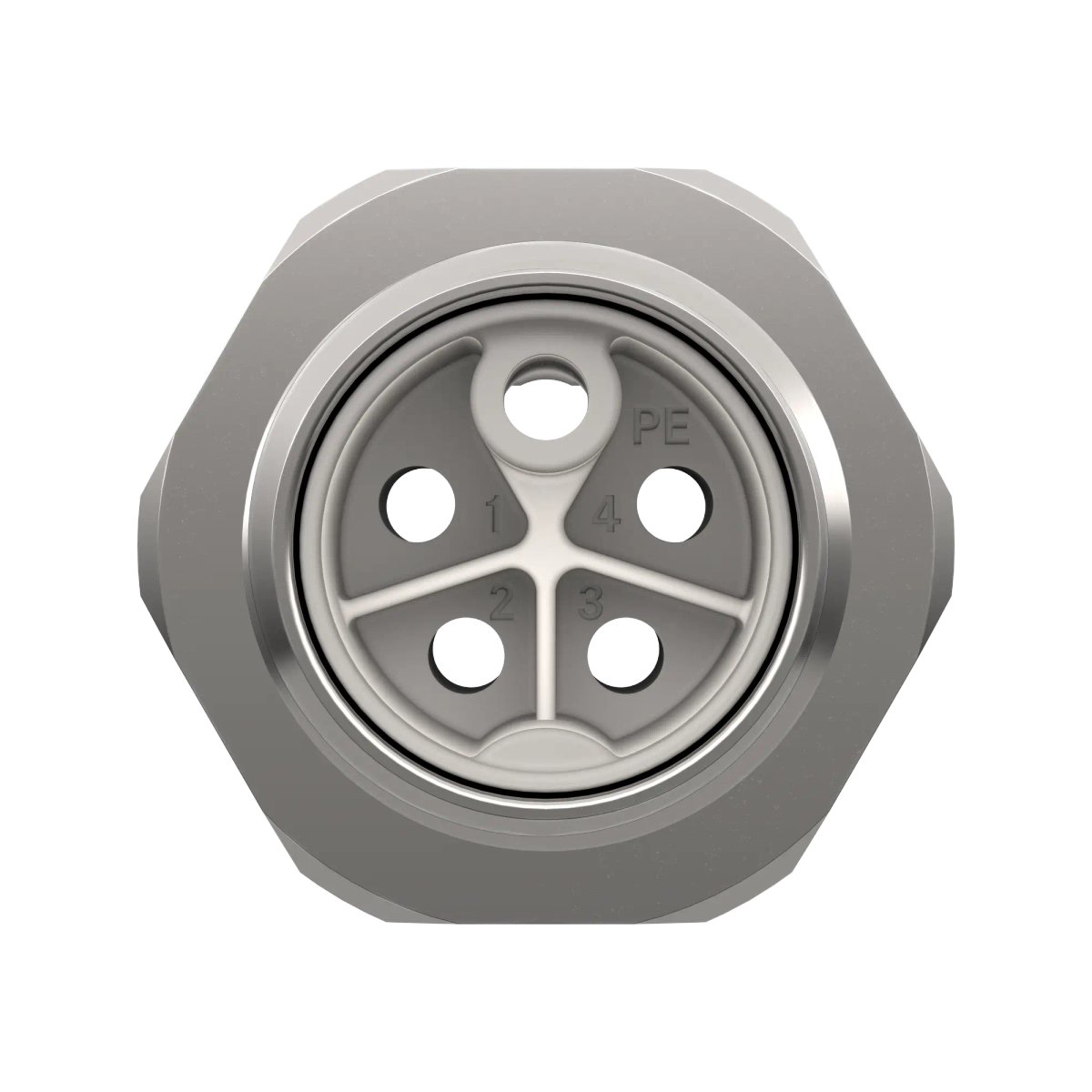

EPIC® POWER M12K G4

Naziv

Koda izdelka

Premer konektorja

Dolžina odstranjevanja izolacije vodnika

Min. presek povezovalnega vodnika (mm2)

Cena

Količina

EPIC® POWER M12K G4 4+PE 1,5 (1)

44423162

20.9 mm

6 mm

0 mm2

14,65 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

EPIC® POWER M12K G4 4+PE (20)

44423419

20.9 mm

9,58 €

Min. količina za naročanje: 100

Rok dobave sporočimo po obdelavi naročila.

Benefits

Optionally available with crimp or solder contacts.
Suitable for conductor cross-sections from 0.75 to 2.50 mm2.
Powerful up to 12 A despite extremely space-saving design for tight spaces.
The mechanical K coding of the connector face prevents incorrect plugging with the mating connector.
Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly.

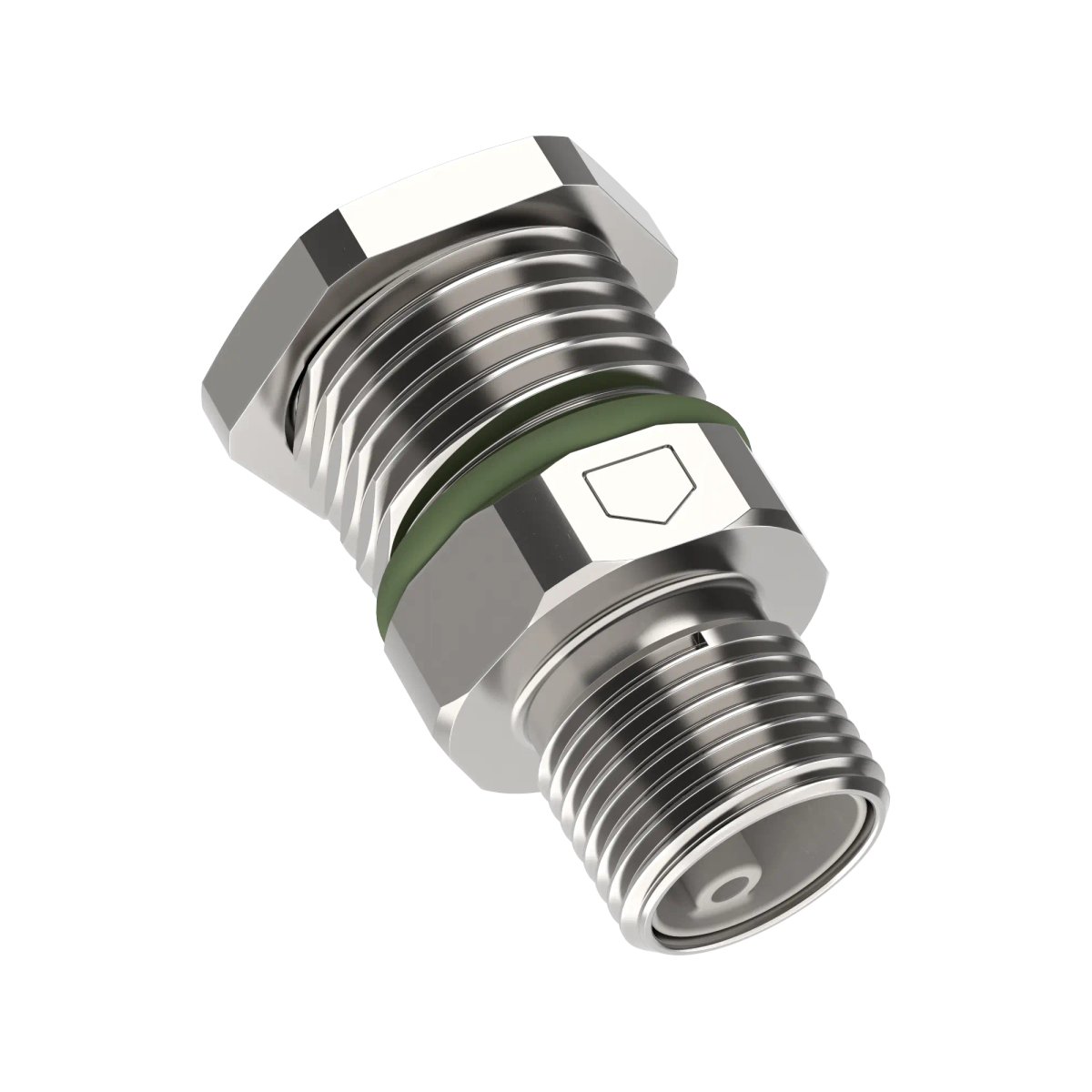

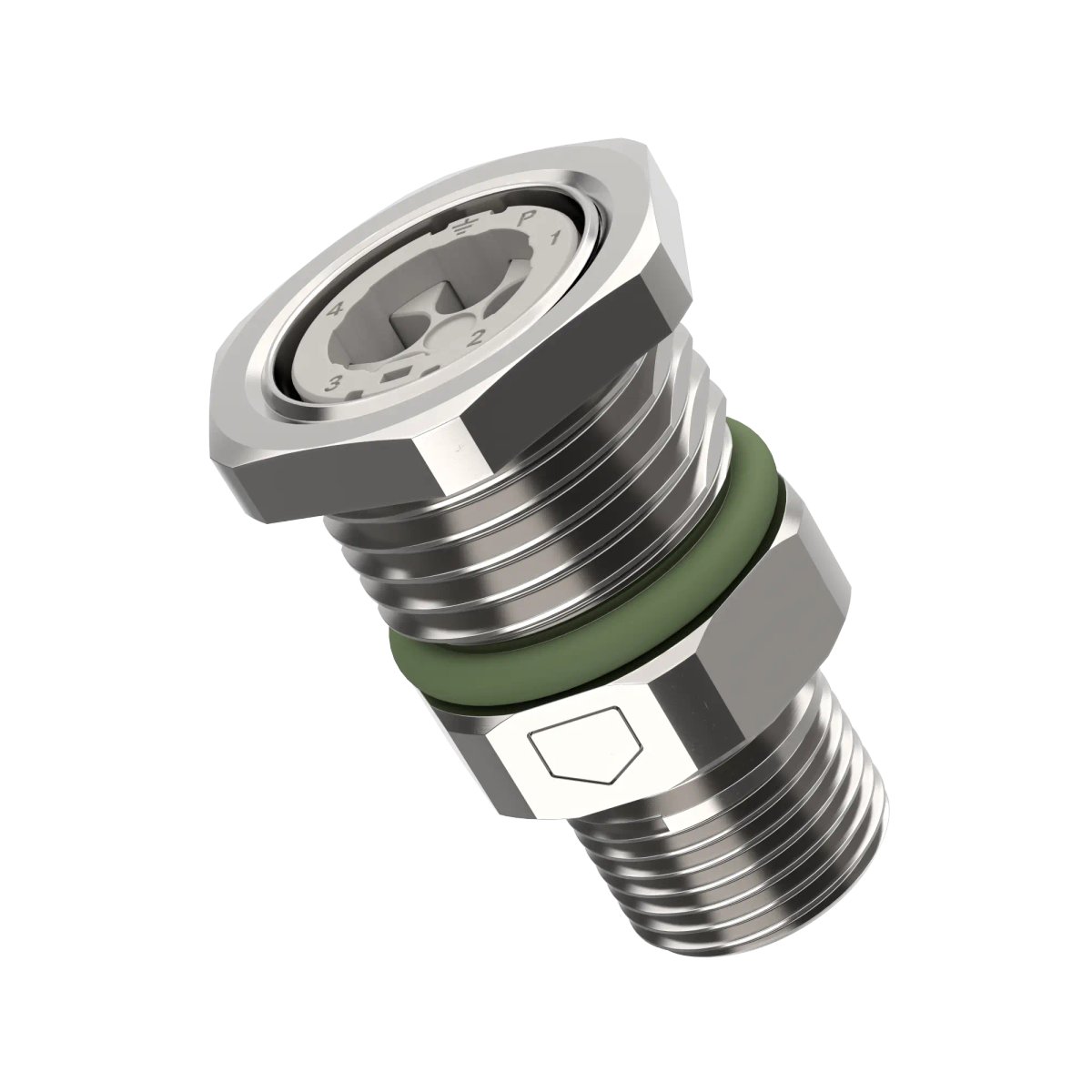

G4 panel-mount base for use with D6 cable connector.
Packaging unit with individual power connector and solder contacts especially available for maintenance work.
When connected, protection class IP 65, IP 67 and IP 69 can be achieved.

For connecting three-phase motors up to 7.5 kW.
Withstands high environmental and mechanical stress.
Especially for environments where electromagnetic compatibility (EMC) is required.
For connecting devices and machines to a power supply in various applications

Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
