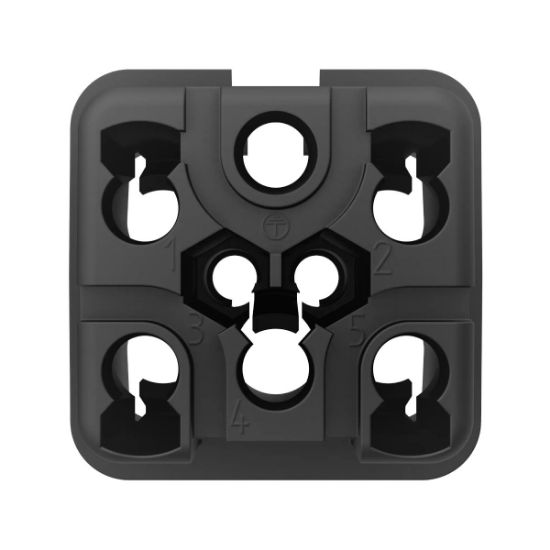

EPIC® H-Q 5

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Maks. upor kontakta (mOhms)

Premer kontakta

Min. presek povezovalnega vodnika (mm2)

Cena

Količina

H-Q 5 SC MALE INSERT

10431500

2 m?

2.5 mm

0.5 mm2

4,39 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

H-Q 5 BC FEMALE INSERT

10432500

2 m?

2.5 mm

0.5 mm2

4,95 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

EPIC® H-Q 5 BC PE-S

10432600

2 m?

2.5 mm

0.14 mm2

4,49 €

Pakiranje *

Min. količina za naročanje: 10

Ni zaloge, predviden rok dobave: 27. 12. 2024.

EPIC® H-Q 5 BC PE-C

10432610

2 m?

2.5 mm

0.14 mm2

1,68 €

Pakiranje *

Min. količina za naročanje: 10

Na zalogi, predviden rok dobave 5-8 delovnih dni.

EPIC® H-Q 5 SC PE-C

10431610

2 m?

2.5 mm

0.14 mm2

2,02 €

Pakiranje *

Min. količina za naročanje: 10

Na zalogi, predviden rok dobave 5-8 delovnih dni.

EPIC® H-Q 5 SC PE-S

10431600

2 m?

2.5 mm

0.14 mm2

4,34 €

Pakiranje *

Min. količina za naročanje: 10

Na zalogi, rok dobave 2-4 delovne dni.

Benefits

Special PE crimp contact enables automated assembly of a completely vibration-proof connector.
Can be connected to market-standard connectors.
Protective earths (PE) can be connected in two ways: the "PE-S" variant can be used with a PE screw contact; the "PE-C" variant with a PE crimp contact.
High power up to 30 A thanks to the compact arrangement of the 5 power contacts.
Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly.
Suitable for conductor cross-sections from 0.14 to 4.00 mm2.
High performance crimping contacts
PE contact with screw connection

Applications

Suitable for wiring inside control cabinets.
For use with many EPIC® rectangular connector housings.
Machine and equipment manufacturing
Control engineering
For connecting devices and machines to a power supply in various applications

Documentation

Notes

Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
