EPIC® H-BE 6 Cage clamp

Naziv

Koda izdelka

Maks. upor kontakta (mOhms)

Premer kontakta

Min. presek povezovalnega vodnika (mm2)

Cena

Količina

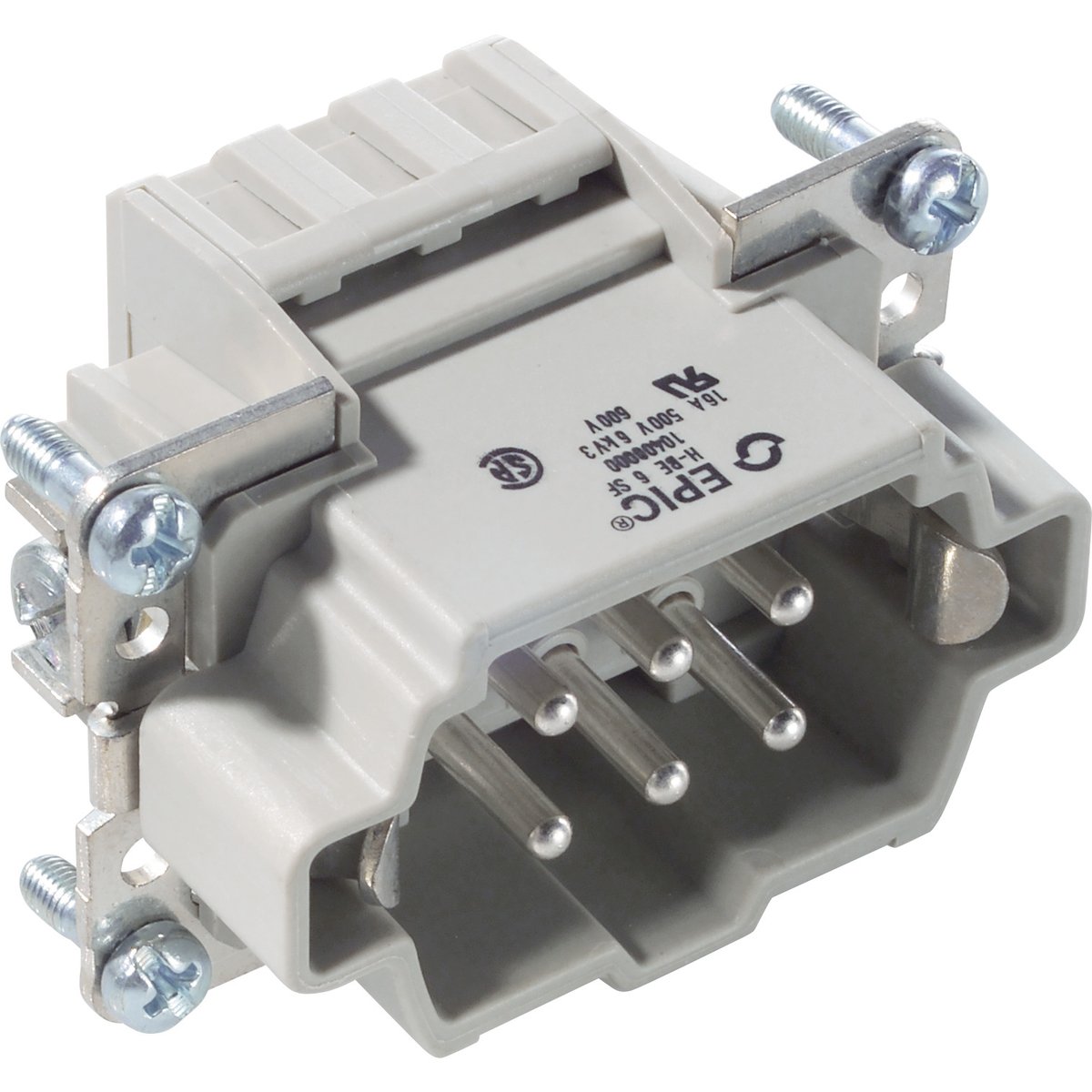

H-BE 6 SF MALE INSERT W. CLAMP SPRING

10400000

4 m?

2.5 mm

0.5 mm2

7,76 €

Min. količina za naročanje: 10

Na zalogi, predviden rok dobave 5-8 delovnih dni.

H-BE 6 BF FEMALE INSERT M.KLEMMFEDER

10401000

4 m?

2.5 mm

0.5 mm2

8,28 €

Min. količina za naročanje: 10

Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

Inserts from the EPIC® H-BE series are regarded as classics in industry and are ideal for use at higher voltages and currents.
In the EPIC® H-BE series, inserts of different connection types can be combined with one another (screw, crimp, cage clamp or push-in) within the same size.
A cage clamp connection enables assembly without special tools and establishes a vibration-proof connection between the contact and the cable. Stranded wires can be connected with or without a wire end ferrule.
Made of robust polycarbonate (flammability class V-2 according to the UL 94 testing procedure for the flammability of plastics).
UL certification according to technical data enables the product to be used on the North American market.
Wide variety of suitable housing variants.

Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
