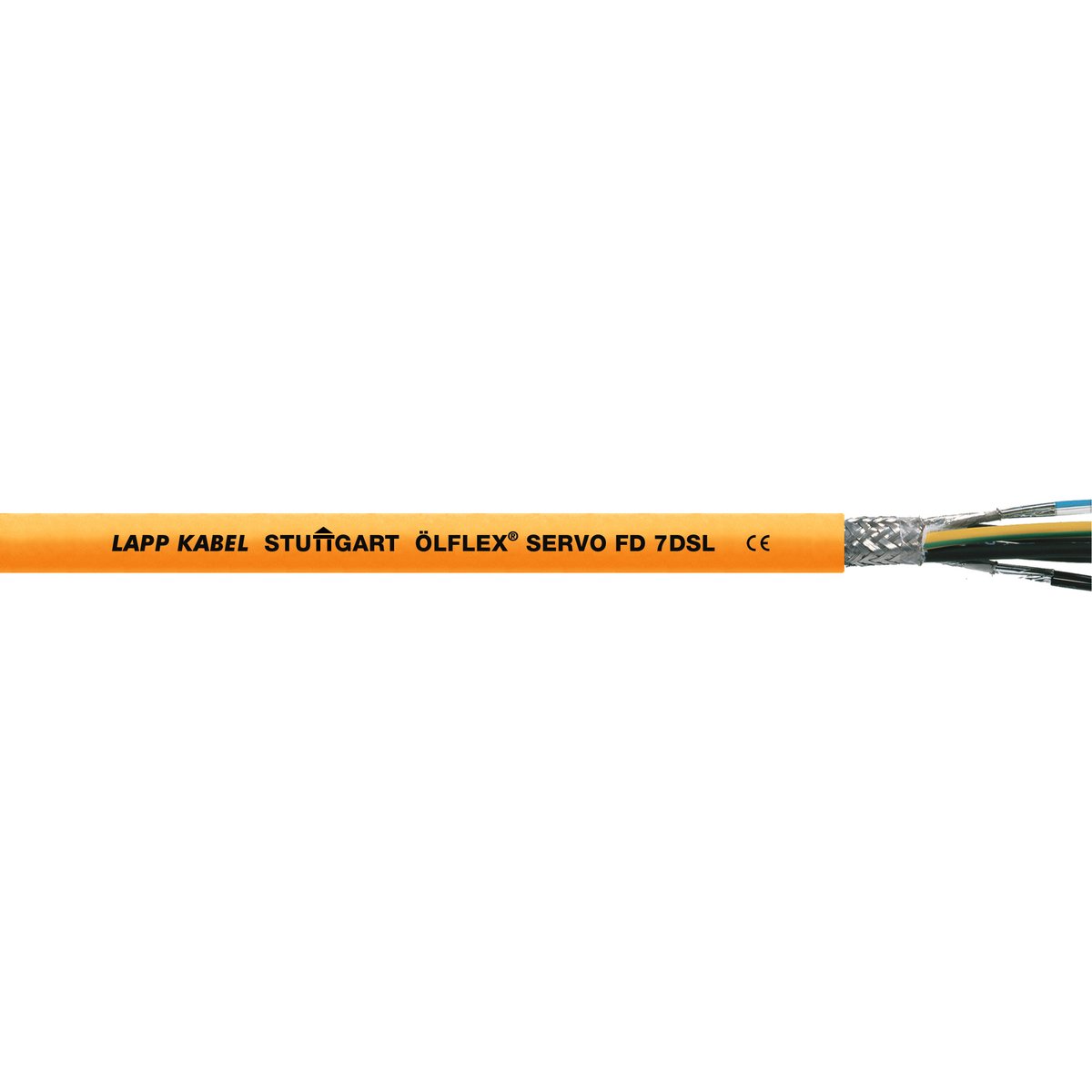

ÖLFLEX® SERVO FD 7DSL

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Testna napetost

test voltage power cores

test voltage control cores

Cena

Količina

ÖLFLEX® SERVO FD 7DSL 4G1+(2x0,75)+(2x22A

1023274

4 kV

8,07 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Min. količina za naročanje: 2000

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® SERVO FD 7DSL 4G1,5+(2x22AWG)

1023275

4 kV

6,96 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® SERVO FD 7DSL 4G2,5+(2x22AWG)

1023276

4 kV

9,27 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® SERVO FD 7DSL 4G4+(2x22AWG)

1023277

4 kV

10,98 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Min. količina za naročanje: 1000

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® SERVO FD 7DSL 4G1,5+(2x1)+(2x22A)

1023278

4 kV

9,17 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® SERVO FD 7DSL 4G2,5+(2x1)+(2x22A)

1023279

4 kV

10,58 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® SERVO FD 7DSL 4G4+(2x1)+(2x22A)

1023280

4 kV

13,27 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® SERVO FD 7DSL 4G6+(2x1)+(2x22AWG

1023281

4 kV

15,26 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Min. količina za naročanje: 2000

Rok dobave sporočimo po obdelavi naročila.

ÖLFLEX® SERVO FD 7DSL 4G0,5+(2x0,34)+(2x

1023282

4 kV

6,10 €

Dolžina *

Na zalogi, predviden rok dobave 5-8 delovnih dni.

ÖLFLEX® SERVO FD 7DSL 4G0,75+(2x0,34)+...

1023273

4 kV

6,79 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

Also available in versions with one screened control core pair, e.g. for brakes.
Allows space-saving installation without additional encoder cable. Instead of the encoder cable, integrated signal pairs, signal cores or star quad bundles take over the signal transmission.
Reduced connection costs due to less cabling work and quick installation of fewer components.
Compatible with single-cable technology interfaces such as HIPERFACE DSL® and SCS open link.
Durable cable chain use with long travel distances or high acceleration (LAPP performance class “Extended Line”). This saves costs and increases the efficiency of machines.
Space-saving and weight-saving hybrid cable for simultaneous power supply, signal and data transmission (single-cable technology).
Ideal protection against electromagnetic interference thanks to copper screening braiding with a high degree of coverage.
Highly flexible cable design means maximum product performance.
Low-capacitance core insulation for long transmission paths.
UL/CSA certification according to technical data enables the product to be used in the North American market.

Applications

For connecting frequency converters and servo motors.
Especially for environments where electromagnetic compatibility (EMC) is required.
Can be used in dry, wet and especially in harsh and oily environments.
The PU outer sheath withstands high mechanical loads.
The PU outer sheath is resistant to mineral oil-based lubricants and is highly chemical resistant.
Suitable for outdoor use.
Flexible use up to -40°C.
The cable design allows highly flexible, continuously flexing use in moving machine parts and in the cable chain, with horizontal travel distances of up to 20 m.

Documentation

Notes

Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
HIPERFACE DSL® is a registered trademark of SICK AG; ACURO®link and SCS open link are registered trademarks of Hengstler GmbH.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
